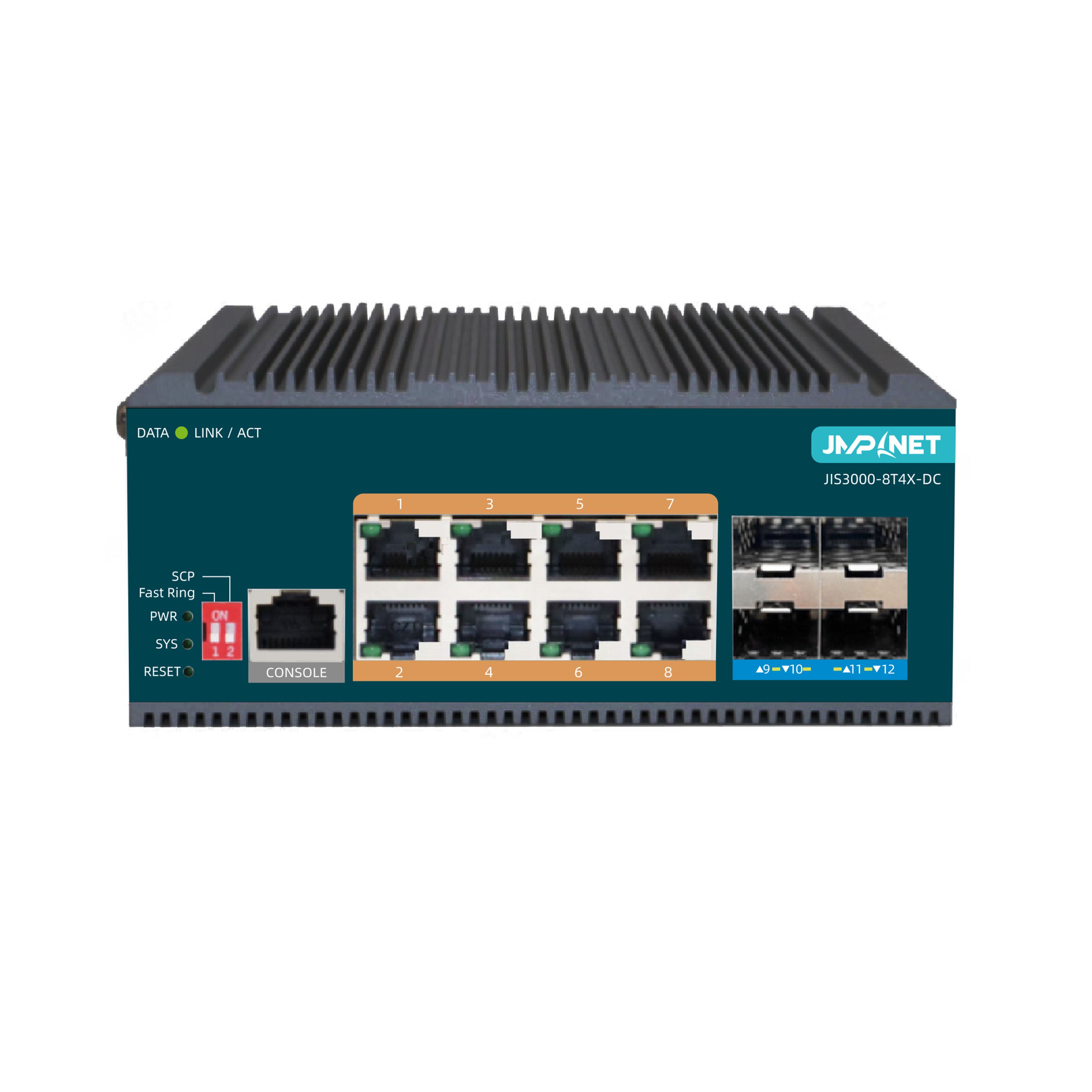

JIS3000-8T4X-DC, 8 x 1Gb RJ45, 4 x 10Gb SFP/SFP+, L3 Managed Industrial Switch

$354.00
Quantity
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Vendor by:

JIS3000-8T4X-DC, 8-Port Gigabit Ethernet L3 Managed Industrial Switch, 8 x 10/100/1000BASE-T, with 4 x 10Gb SFP/SFP+

Specifications

Ports 8x 10/100/1000BASE-T RJ45 | 4x 1/2.5/10G SFP
Swiching Capacity 96Gbps
Memory 512MB Forwarding Rate 71.42Mpps
Flash 64MB Jumbo Frame 12KB
PoE Standard N/A Packet Buffer 12Mbit
PoE Budget N/A MAC Table Entries 16K
Housing Metal ARP Table Entries 8K
Rack Space 1U Active VLAN 4K
Mounting Methods Rackmount Total Number of IPv4 Routes 6K
FAN Fanless Total Number of IPv6 Routes 2K
Dimensions (D*W*H) 145*109*62mm
Operating Temperature -40℃-75℃
Weight Storage Temperature -40 °C ~ 80 °C
Input 12~55V DC
Operating Humidity 5% ~ 95% non-condensing
Max. Power Consumption 12.4W(33.5VDC)
Storage Humidity 0% ~ 95% non-condensing
EMC Standard 47 CFR FCC Part 15B Class A
ICES-003
EN 55032 Class A
EN 55035
EN 61000-3-2 Class A
EN 61000-3-3
IEC/EN 61000-4-2
IEC/EN 61000-4-3
IEC/EN 61000-4-4
IEC/EN 61000-4-5
IEC/EN 61000-4-6
IEC/EN 61000-4-8
IEC/EN 61000-4-11
AS/NZS CISPR 32
VCCI-CISPR32
KS C9832
KS C9835
Safty  EN 62368-1
IEC 62368-1
K62368-1
AS/NZS 62368-1
Environmental Test IEC 60068-2-1 Cold
IEC 60068-2-2 Dry heat
IEC 60068-2-14 Change of Temperature
IEC 60068-2-78 Damp heat, steady state
RoHS IEC62321 (RoHS 2.0)

Software Features

Solutions

Feature Spotlights

Dimension
